Details

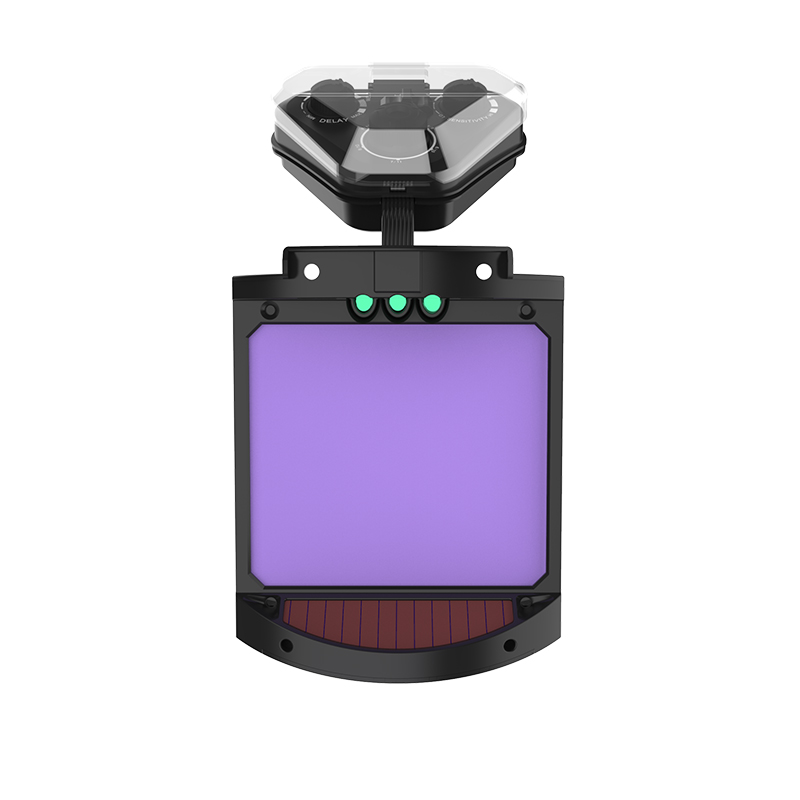

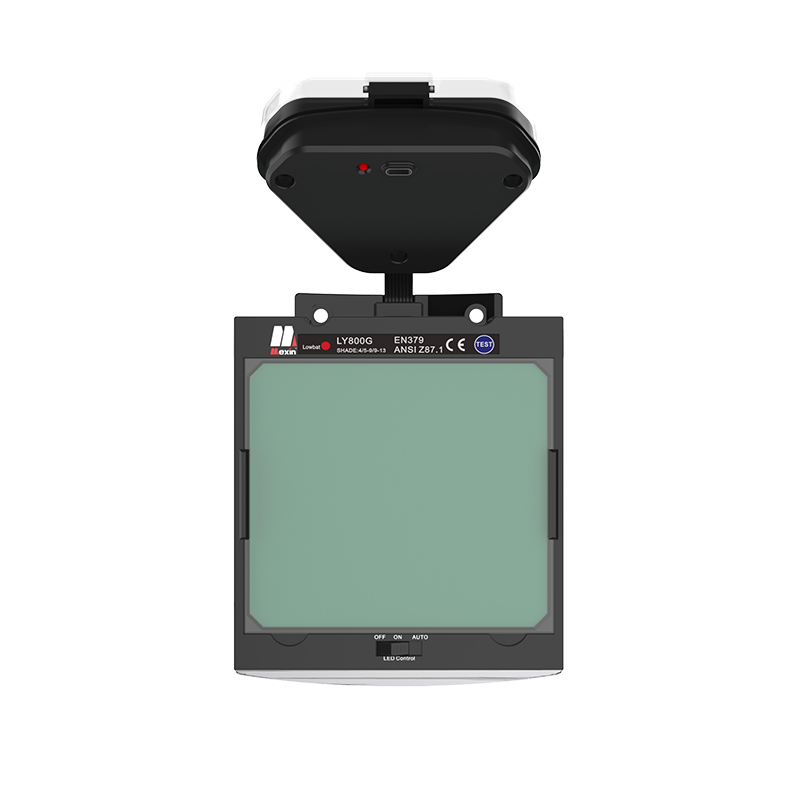

ADF Model | LY800G | |
|---|---|---|
| Optical Class | 1/1/1/2 or 1/1/1/1 | |
| Cartridege Size | 153.5mm x 120.5mm x 42mm | |
| Viewing Area | 109.5 x 97mm ( 4.31” x 3.82” ) | |
| Light State | DIN3.5 | |
| Dark State | DIN5~9/9 ~13 | |
| Shade Control | External & Stepless | |
| Switching Time | 1/10000S +_20% or 1/25000S+_20% | |
| Sensitivity Control | External & Stepless | |
| Delay Time | 0.1S～1S | |
| Power Supply | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | 300mAh Rechargeable | |
| Replaceable Battery | No | |
| Operating Temp. | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | |
| Arc Sensor | 4 | |
| Low Amperage TIG Rated | ≥5amps | |
| Helmet Material | PA or PP | |
| UV/IR Protection | DIN13 | |
| Test | Yes | |
| Low Battery | Yes | |
| Grinding | Yes | |
| Cuting | Yes | |
| LED | Yes | |
