Detail
Model | LY110R | |
|---|---|---|
| Optical Class | 1/1/1/2 or 1/1/1/1 | |
| Cartridge Size | 213mm×83mm×95.5mm | |
| Viewing Area | 140mm×40mm(5.51"×1.57") | |
| Light State | DIN3.5 | |
| Dark State | DIN5～9/9～13 | |
| Shade Control | External & Stepless | |
| Switching Time | 3/10000S±20% | |
| Sensitivity Control | External & Stepless | |
| Delay Time | 0.1S～1S | |
| Power Supply | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | 300mAh Rechargeable | |
| Replaceable Battery | No | |
| Operating Temp. | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | |
| Arc Sensor | 4 | |
| Low Amperage TIG Rated | ≥5amps | |
| Helmet Material | Silicone+ABS | |
| UV/IR Protection | DIN13 | |
| Test | Yes | |
| Low Battery | Yes | |
| Grinding | Yes | |
| Cutting | Yes | |
| LED | Yes | |
Premium Arc Sensors：This product builds two arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

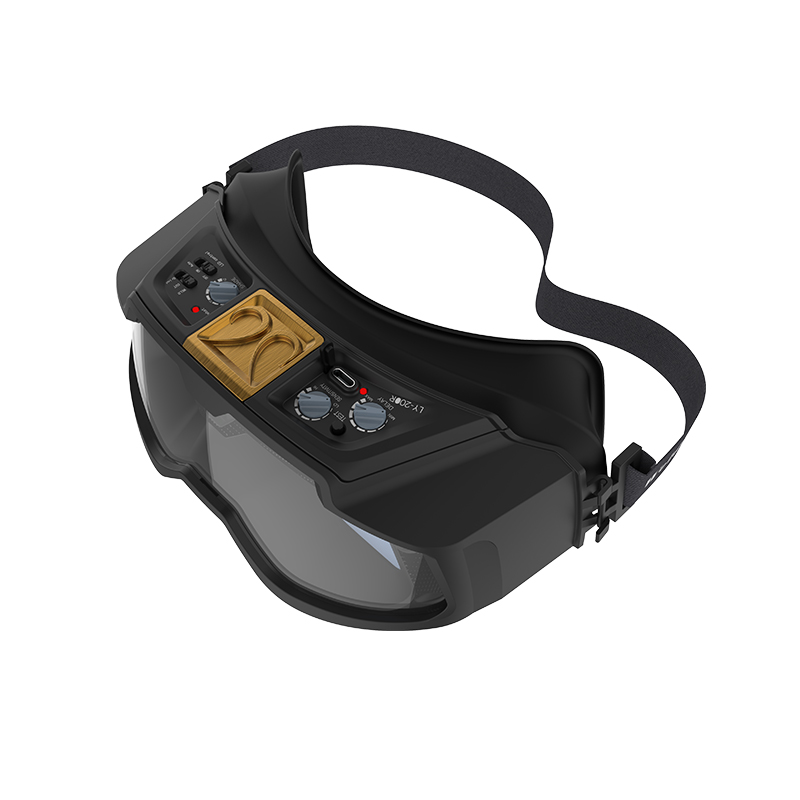

Shade/Sensitivity/Delay Time Stepless Adjustment：Knob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 0.8 seconds, sensitivity from low to high level.
Shade Range 5-9/9-13：For most welding/cutting applications, also including grinding mode.
LED Lighting：In case of low ambient light, the welding helmet can automatically turn on the LED light.
PACKAGING & SHIPPING
1) Wrap the glasses in a plastic bag
2) Put the glasses wrapped in plastic bag into the color box
3) Put 50Pcs of glasses in color boxes into the master carton
